| Model | IF9329 |

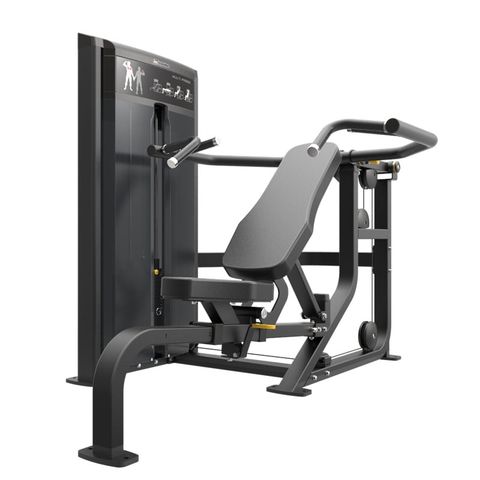

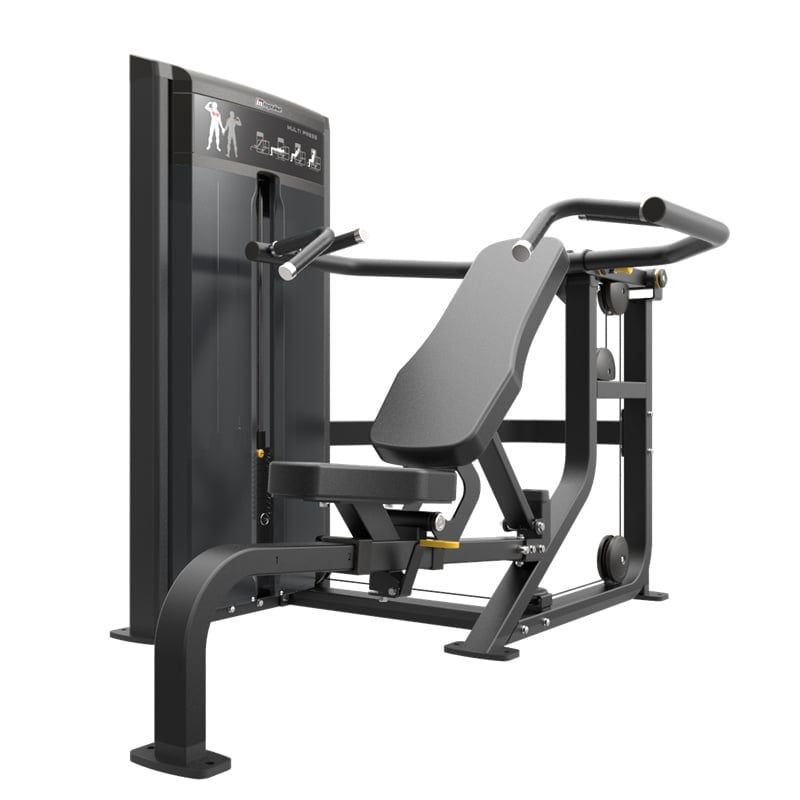

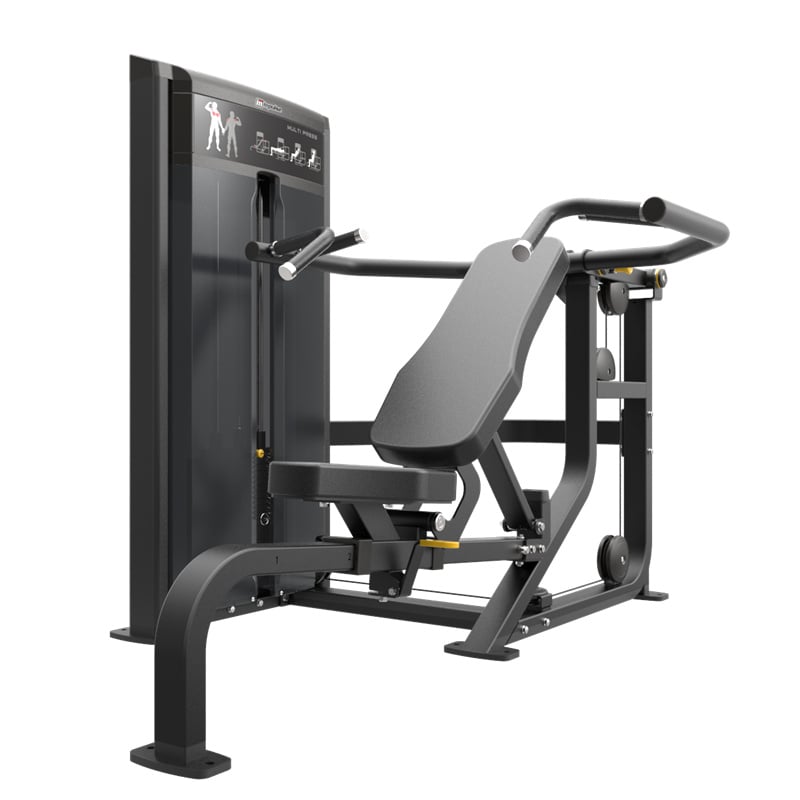

| Product Name | MULTI PRESS |
| Serise | IF93 |
| Security | ISO20957 GB17498-2008 |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Selectorized |
| multi-function | multi-function |
| Maximum load | 134kg |
| Targeted Muscle | Pectoralis major，Deltoid |
| Targeted Body Part | Chest，Shoulder，Upper Body |
| Tube Specification – U Sction | YJ50.0*110.0*2.5 □50.8*2.5 |
| Tube Specification – Function Part | □50.8*76.2*2.5 φ50.8*2.5 |
| Tube Specification – Connection Part | □50.8*76.2*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | / |
| Tube Specification – Handle Tube Part | φ32.0*2.5 |
| Color | Matt Black |
| Optional Color | Double Spray Double Coated |
| Standard Shroud | Single-side Half Surrounded |
| The Material of Standard Shroud | Light Grey Translucent ABS |
| Optional Shroud | Double-side Full Encompassing/Single-side Half Height |
| The Material of Optional Shroud | Light Grey Translucent ABS |
| UPHOLSTERY COLORS | Black+Tree bark stripe+PVC |
| Upholstery Stitching | Black+Single Stitches |
| Upholstery Stuffing | Polymer+Foams |
| Plastic Color | Light Grey |
| Regulating Part Color | Yellow |
| Training Instruction | 2D Diagram |
| Seat adjustment | Dial-type Elastic Bolt+4 level |
| Seat adjustment range | 559mm |
| Back Cushion Adjustment | Dial-type Elastic Bolt+4 level |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | / |
| Leg Cushion Adjustment Range | / |
| Foam Adjustment | / |
| Foam Adjustment Range | / |
| Thickness of Back Cushion | 70mm |
| Leg Cushion Specification | / |
| Other Adjustment | Lifting Rack Adjustment |
| Transmission Cable | Domestic Cable、φ5 |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Both ends with aluminum baffle ring and aluminum head） |
| Main Pulley Size | φ114 |
| Main Pulley Material | PA6+30%GF |
| Guide Rod Specification | φ19mm Solid |
| Guide Rod Material | Hard Chromium Plating in Steel |
| Standardized Parts | Medium Carbon Steel(8.10 Grade、Galvanization) |
| Main Bearing | GB2766205-2ZC3 |
| Product Dimension | 2027*1446*1530mm |
| Gross Weight | 209.8/226.9/244.6/271(kg) |
| Opt Weight Stack | 160LBS/200LBS/235LBS/295LBS |
| Weight Stack Size、Quantity | 1.120*276.5*19、15 pieces 2.120*276.5*19/19 pieces 3.120*406*19、15 pieces 4.120*406*19/19 pieces |
| Weight Stack Weight/Slice | 10LBS/15LBS |
| Number of Packages | 3 |
| Packaged Form | Carton |
| Package Size and Weight | IF9329ZJ-WXBOX1 1465*815*210IF9329ZJ-WXBOX2 1165*1175*280IF9329KBQ-WXBOX1 1205*685*160
IF9329KBX-WXBOX1 |
