| Model | IF9330 |

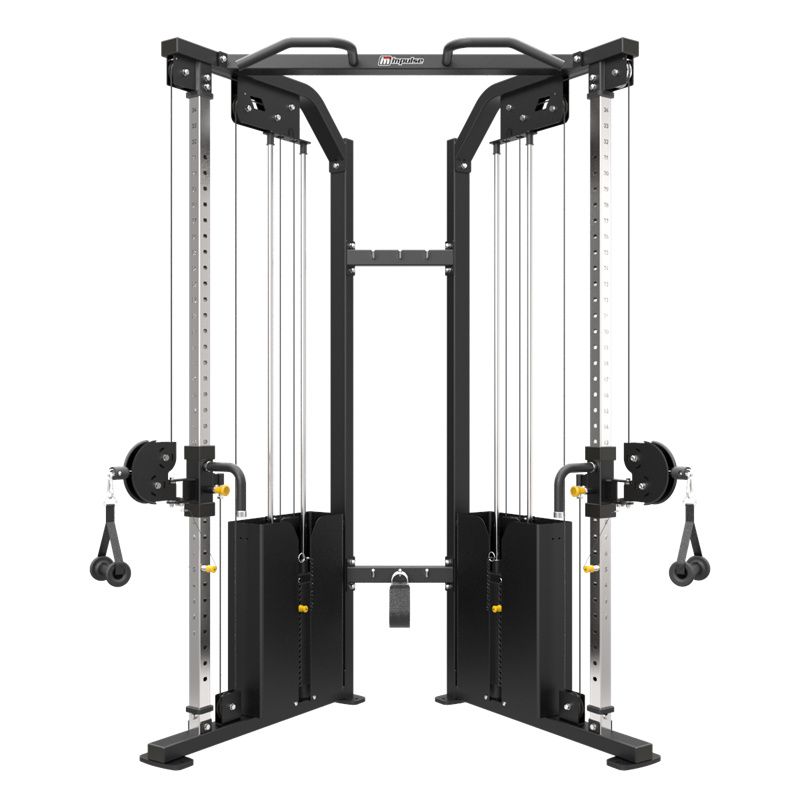

| Product Name | DUAL ADJUSTABLE PULLEY |
| Serise | IF93 |
| Security | ISO20957 GB17498-2008 |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Selectorized |
| multi-function | multi-function |
| Maximum load | 2*134kg |
| Targeted Muscle | Whole Body |
| Targeted Body Part | Whole Body |
| Tube Specification – U Sction | / |
| Tube Specification – Function Part | □50.8*76.2*2.5 □50*2.0不锈钢 |
| Tube Specification – Connection Part | □40*60*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | □50*2.0 stainless steel |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Color | Matt Black |
| Optional Color | Double Spray Double Coated |
| Standard Shroud | / |
| The Material of Standard Shroud | Light Grey Translucent ABS |
| Optional Shroud | Double-side Full Encompassing/Single-side Half Height |
| The Material of Optional Shroud | Light Grey Translucent ABS |
| UPHOLSTERY COLORS | / |
| Upholstery Stitching | / |
| Upholstery Stuffing | / |
| Plastic Color | Black |
| Regulating Part Color | Yellow |
| Training Instruction | 2D Diagram |
| Seat adjustment | / |
| Seat adjustment range | / |
| Back Cushion Adjustment | / |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | / |
| Leg Cushion Adjustment Range | / |
| Foam Adjustment | / |
| Foam Adjustment Range | / |
| Thickness of Back Cushion | / |
| Leg Cushion Specification | / |
| Other Adjustment | Height Adjustment |
| Transmission Cable | Domestic Cable、φ5 |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Both ends with aluminum baffle ring and aluminum head） |
| Main Pulley Size | φ89 |
| Main Pulley Material | PA6+30%GF |
| Guide Rod Specification | φ19mm Solid |
| Guide Rod Material | Hard Chromium Plating in Steel |
| Standardized Parts | Medium Carbon Steel(8.11 Grade、Galvanization) |
| Main Bearing | / |
| Product Dimension | 1642*885*2269 |
| Gross Weight | / |
| Opt Weight Stack | 160LBS/200LBS/235LBS/295LBS |
| Weight Stack Size、Quantity | 1.120*276.5*19、15 pieces 2.120*276.5*19/19 pieces 3.120*406*19、15 pieces 4.120*406*19/19 pieces |
| Weight Stack Weight/Slice | 10LBS/15LBS |
| Number of Packages | 2 |
| Packaged Form | Carton |
| Package Size and Weight | IF9330ZJ-WXBOX1 2175*645*320IF9330KBQ-WXBOX1 2045*235*330
IF9330KBX-WXBOX1 |
