| Model | IF9334 |

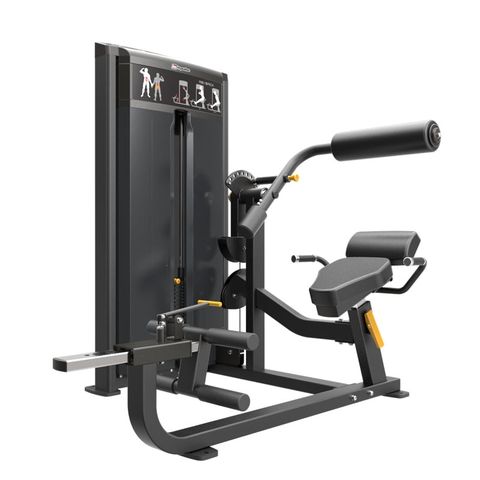

| Product Name | ABDOMINAL and BACK EXTENSION |
| Serise | IF93 |
| Security | ISO20957 GB17498-2008 |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Selectorized |
| multi-function | Multi-function |
| Maximum load | 134kg |
| Targeted Muscle | Rectus Abdominis and Lats，Erector Spinae |
| Targeted Body Part | Abdomen and Back，Waist |
| Tube Specification – U Sction | YJ50.0*110.0*2.5 □50.8*2.5 |
| Tube Specification – Function Part | □50.0*100.0*2.5 φ50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Connection Part | YJ65*110*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | □30.0*70.0*2.0（201 stainless steel） |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Color | Matt Black |
| Optional Color | Double Spray Double Coated |
| Standard Shroud | Single-side Half Surrounded |
| The Material of Standard Shroud | Light Grey Translucent ABS |
| Optional Shroud | Double-side Full Encompassing/Single-side Half Height |
| The Material of Optional Shroud | Light Grey Translucent ABS |
| UPHOLSTERY COLORS | Black+Tree bark stripe+PVC |
| Upholstery Stitching | Black+Single Stitches |
| Upholstery Stuffing | Polymer+Foams |
| Plastic Color | Light Grey |
| Regulating Part Color | Yellow |
| Training Instruction | 2D Diagram |
| Seat adjustment | Compression-type Elastic Bolt |
| Seat adjustment range | 150MM |
| Back Cushion Adjustment | / |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | / |
| Leg Cushion Adjustment Range | / |
| Foam Adjustment | Draw-out Elastic Bolt |
| Foam Adjustment Range | 90°，15°(1 Level) |
| Thickness of Back Cushion | 70mm |
| Leg Cushion Specification | φ129mm |
| Other Adjustment | Pedal Adjustment Compression-type Elastic Bolt |
| Transmission Cable | Domestic Cable、φ5 |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Both ends with aluminum baffle ring and aluminum head） |
| Main Pulley Size | φ114 |
| Main Pulley Material | PA6+30%GF |
| Guide Rod Specification | φ19mm Solid |
| Guide Rod Material | Hard Chromium Plating in Steel |
| Standardized Parts | Medium Carbon Steel(8.8 Grade、Galvanization) |
| Main Bearing | GB2766005-2ZC3 |
| Product Dimension | 1592*1253*1531 |
| Gross Weight | / |
| Opt Weight Stack | (160LBS/200LBS/235LBS/295LBS) |
| Weight Stack Size、Quantity | 1.120*276.5*19、15 Piece 2.120*276.5*19/19 Piece 3.120*406*19、15 Piece 4.120*406*19/19 Pieve |
| Weight Stack Weight/Slice | 10LBS/15LBS |
| Number of Packages | 3 |
| Packaged Form | Carton |
| Package Size and Weight | IF9334ZJ-WXBOX1 1465*815*210IF9334ZJ-WXBOX2 1435*885*320IF9334KB-WXBOX1 1205*685*180 |
