| Model | IFP1711 |
| Product Name | Hack Squat/Leg Press |
| Serise | IFP1 |

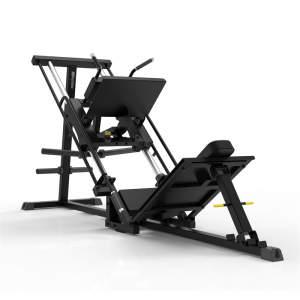

| Picture |  |
| Time to Market | |
| Delisting time | |
| Security | ISO20957 GB17498-2008 |
| Certification | / |
| Patent | / |
| Functional Information | |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Plate Loaded |
| Function | Multi-function |
| Collocation | |
| Maximum load | 175kg*2 |
| Targeted Muscle | Quadriceps Femoris、Hamstring Muscles、 Hip Muscle Group、Calf Muscle Group |
| Targeted Body Part | Legs |
| Product Features | |
| Tube Specification – U Sction | |
| Tube Specification – Function Part | □50.8*2.5 φ50.8*2.5（201不锈钢） |
| Tube Specification – Connection Part | □50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Bottom Part | □50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | / |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Pedal | 3mm Checkered Plates（Anti-skid Paint Coated）/6mm Checkered Plates（Anti-skid Paint Coated） |
| Toner | BG304-331 DG506 |
| Optional Color | |
| Standard Shroud | / |
| The Material of Standard Shroud | / |
| Optional Shroud | / |
| The Material of Optional Shroud | / |
| UPHOLSTERY COLORS | Black + Patterned Leather + PVC |
| Optional Upholstery Color | |
| Upholstery Stitching | Black + Single stitches |
| Upholstery Stuffing | Polymer+Foams |
| Upholstery Cover | |
| Plastic Color | Black/Cold Gray/Yellow |
| Regulating Part Color | |
| Training Instruction | / |
| Seat adjustment | / |
| Seat adjustment range | / |
| Back Cushion Adjustment | Tooth Plate adjusting + 4 level |
| Back Cushion Adjustment Range | 106°-130° |
| Leg Cushion Adjustment | |
| Leg Cushion Adjustment Range | |
| Foam Adjustment | |
| Foam Adjustment Range | |
| Thickness of Back Cushion | 70mm |
| Leg Cushion Specification | |
| Transmission Belt | / |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Aluminum baffle ring and aluminum head）, Yellow PVC adjusting handle |
| Main Pulley Size | φ57 idler wheel |
| Main Pulley Material | POM |
| Guide Rod Specification | Guideway φ50.8*2.5 |
| Guide Rod Material | Stainless steel 201 |
| Standardized Parts | Medium Carbon Steel(8.21 grade、Zinc Plating-black) |
| Main Bearing | / |
| Hook | / |
| Barbell Plate Storage Bar | 2 |
| Barbell Bar Diameter | 50mm |
| Maximum Storage Weight of Single Barbell Plate Storage Bar | 100kg |
| Product Dimension | 2634*1020*1373mm |
| Net Weight | 150.5kg |
| Gross Weight | 162.3kg |
| Opt Weight Stack | |
| Weight Stack Size、Quantity | |
| Weight Stack Weight/Slice | |
| Number of Packages | 2 |
| Packaged Form | Carton |
| Package Size and Weight | BOX1:1575*875*240 BOX2:855*655*450 |
| 20′ | |
| 40 HQ | |
| 40 GP | 94 |
